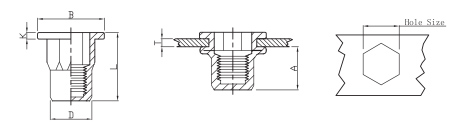

螺纹 Thread |
编号 P/N |
T(GRIP RANGE) |
A |
Hole Size |
D |
B |
K |
L |
|
M4 |
FH-IHBC/SS-0420 |
0.5-2.0 |
11.5 |
6.0 |
5.9 |
9.0 |
1.0 |
16.0 |
|
M5 |
FH-IHBC/SS-0525 |
0.5-2.5 |
13.5 |
7.0 |
6.9 |
10.0 |
1.0 |
18.5 |
|
M6 |
FH-IHBC/SS-0630 |
0.5-3.0 |
17.0 |
9.0 |
8.9 |
12.7 |
1.5 |
23.0 |
|
M8 |
FH-IHBC/SS-0835 |
1.0-3.5 |
18.2 |
11.0 |
10.9 |
16.0 |
1.5 |
25.0 |
|
M10 |
FH-IHBC/SS-1040 |
1.0-4.0 |
25.0 |
13.0 |
12.9 |
19.0 |
1.7 |
33.0 |
